Double Shaft Rail-DSRE12 block

-Shaft diameter of the rail: Ø8, Ø12, Ø16
-Block type: DSR8(standard)
,DSRL8(extended)DSR12(standard),DSRL12(extended)DSR16(standard), DSRL16(extended)-optional process: additional tapped hole.

We are the top manufacturer specializing in producing many kinds of linear slides, all of which are well and high quality control and made in Taiwan.

Feature:
Slide smoothly with low noise. Suitable for dusty environment. Easy to maintain and replace.

Application:
machine, automation, storage system, household slide rail, Fire protection engineering medical aids devices

Length: 400-4000 mm
we can supply the guide in special length as your requirement.If you need more details or dimension, please contact us.

unit:(mm)
Shaft diameter
Ød		 Rolling
Bearings No. 		 Basic static
load rating
C(kgf) 		 Basic static
load rating

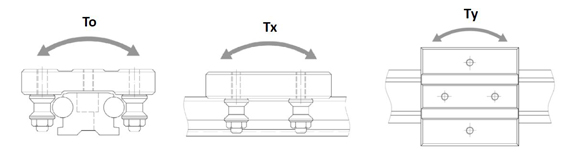

Co(kgf) 		 Allowable static moment Weight
To
(kgf-m)		 Tx
(kgf-m)		 Ty
(kgf-m)		 Block
kg		 Rail
kg/M
Ø12 4 140 230 1.5 2.5 3.5 0.36 3.2


Model NO:

DSRE12-B2-R1200
        (1)      (2)     (3)

(1)   Model NO: DSRE12

(2)   Blocks for per track rail:
         B1: 1 Block、B2: 2 Blocks、B3: 3 Blocks,...
(3)   Length of rail(1200mm):
        Shaft:Hardened(HRC60±2)ground and chromium plated
