Parallel Shaft Rail-DSR4/5

Model NO:

DSR4-B2-R1200
(1)    (2)    (3)

(1) Model :DSR4/DSR5
(2) Blocks for per track rail:
       B1: 1 Block、B2: 2 Blocks、B3: 3 Blocks,...
(3) Length of rail(1200mm):
      Shaft:Hardened(HRC60±2)ground and chromium plated

Glide smoothly with low noise.
Suitable for dusty or wet environment.

Can be widely applied in various industries. e.g. Machine door, automation application, warehouse storage system, slides of outdoor chargers of EV (electric vehicle)、Electric Mobility Scooter, fire equipment

unit:(mm)
Model No. Shaft diameter
Ød		 Rolling
Bearings No.		 Dimensions of assembly Dimensions of block

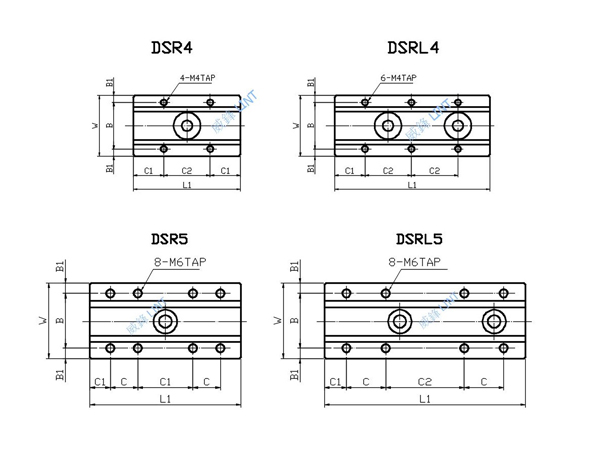

H H2 B B1 C C1 C2 L1 W H1
DSR4 Ø4 3 28.5 18 26 4 - 17 26 60 34 10
DSRL4 Ø4 4 28.5 18 26 4 - 17.5 26 60 34 10
DSR5 Ø5 3 40 25 35 6.5 17.5 13 35 96 48 13.5
DSRL5 Ø5 4 40 25 35 6.5 25 14 50 128 48 13.5



unit:(mm)
Dimensions of assembly C(kgf) Co(kgf) Allowable static moment Weight Model No.

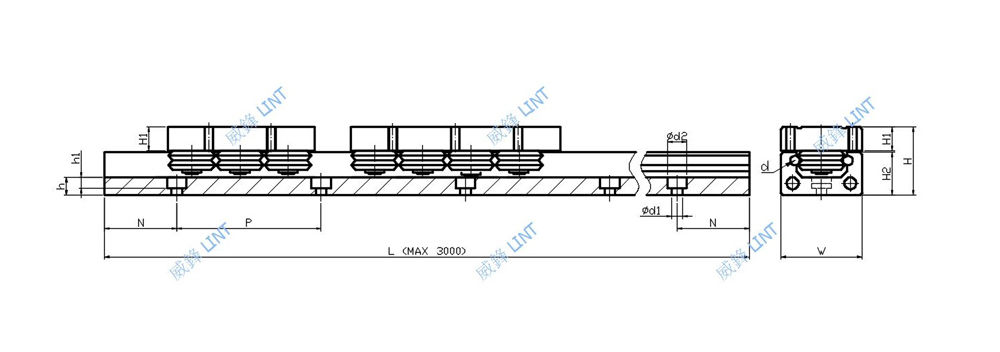

d1 d2 N P L(max)mm h h1 Mo

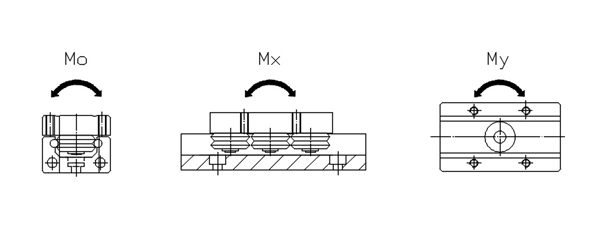

(kgf-m)		 Mx
(kgf-m)		 My
(kgf-m)		 Block
kg		 rail
kg/M
4.5 8.1 30 60 3000 7.5 4.5 40 55 0.15 0.5 0.5 0.1 1.1 DSR4
4.5 8.1 30 60 3000 7.5 4.5 50 65 0.15 0.7 1.0 0.14 1.1 DSRL4
6.7 11 30 60 3000 10.5 6.2 80 120 0.6 2.2 1.5 0.3 2.15 DSR5
6.7 11 30 60 3000 10.5 6.2 100 150 0.6 2.5 1.7 0.4 2.15 DSRL5
