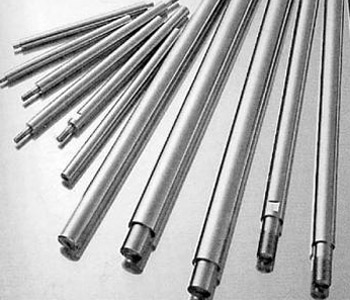

Pneumatic / Hydraulic Use Piston Rod

Material：Steel(S45C)
Treatment：Ground and Hard chrome plated

※Enable to process according to customer drawing
※Model Mark:       CRS             20        x    2000
                             (material)    (axis/size)      (length)


We have considerable experience in exporting.
● Full length of shafts (3000mm~4000mm depends on outer diameter)

● Specified length according to customers’ needs

● Unprocessed material

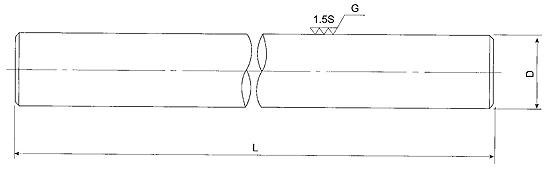

unit:(mm)


Outer Diameter
D(mm)

 Model No.
CRS		 Outer Diameter
Tolerance(μm)		 Maximum
L(mm)		 Mass
kg/m		 Outer Diameter
D(mm)
6 CRS 6 -13 -28 3000 0.22 6
8 CRS 8 4000 0.40 8
10 CRS 10 4000 0.62 10
12 CRS 12 -16
-34		 4000 0.89 12
15 CRS 15 4000 1.39 15
16 CRS 16 4000 1.58 16
18 CRS 18 4000 2.00 18
20 CRS 20 -20
-41		 4000 2.47 20
25 CRS 25 4000 3.85 25
30 CRS 30 4000 5.55 30
35 CRS 35 -25~-64 4000 7.55 35
40 CRS 40 4000 9.87 40
50 CRS 50 4000 15.41 50
55 CRS 55 -30
-60		 4000 18.65 55
60 CRS 60 4000 22.20 60
65 CRS 65 4000 26.05 65
70 CRS 70 4000 30.21 70
75 CRS 75 4000 34.68 75
80 CRS 80 4000 39.46 80
90 CRS 90 -36
-71		 3000 49.94 90
100 CRS 100 3000 61.66 100
120 CRS 120 3000 88.78 120
150 CRS 150 -43
-83		 3000 139 150
