Linear Bearing-LM Series




unit:(mm)
LMSerious basic load rating Inner Diameter

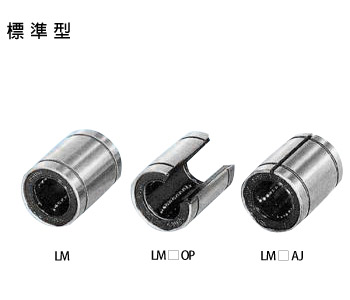

Standard Open Type Adjustable Dynamic
C (N)		 Static C0 (N) dr
(mm)		 Tolerance
(µm)
Model Type Steel ball row Quantity Model Type Steel ball row Quantity Mode Type Steel ball row Quantity
LM6UU 4 - - LM6UUAJ 4 200 260 6  0
-9
LM8SUU 4 - - LM8SUUAJ 4 170 220 8
LM8UU 4 - - LM8UUAJ 4 260 400 8
LM10UU 4 - - LM10UUAJ 4 370 540 10
LM12UU 4 LM12UUOP 3 LM12UUAJ 4 410 590 12
LM13UU 4 LM13UUOP 3 LM13UUAJ 4 500 770 13
LM16UU 5 LM16UUOP 4 LM16UUAJ 5 770 1170 16
LM20UU 5 LM20UUOP 4 LM20UUAJ 5 860 1370 20

   0
-10
LM25UU 6 LM25UUOP 5 LM25UUAJ 6 980 1560 25
LM30UU 6 LM30UUOP 5 LM30UUAJ 6 1560 2740 30
LM35UU 6 LM35UUOP 5 LM35UUAJ 6 1660 3130 35    0
-12
LM40UU 6 LM40UUOP 5 LM40UUAJ 6 2150 4010 40
LM50UU 6 LM50UUOP 5 LM50UUAJ 6 3820 7930 50
LM60UU 6 LM60UUOP 5 LM60UUAJ 6 4700 9990 60    0
-15


unit:(mm)
Dimension Mass
(gf )		 Radial Clearance
(µm)		 Model Type

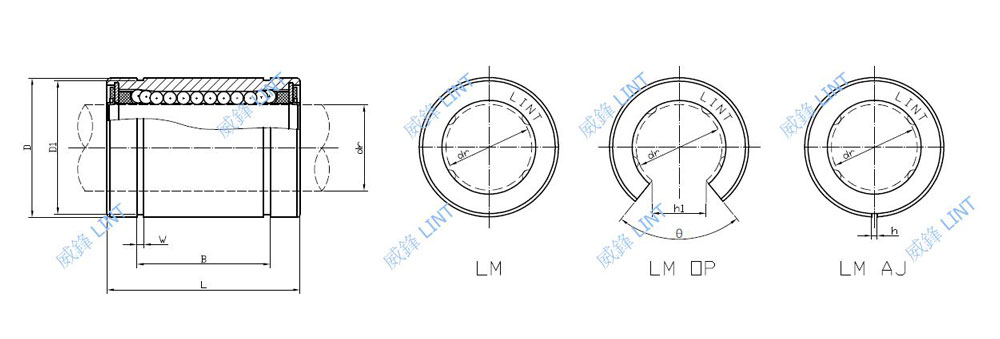

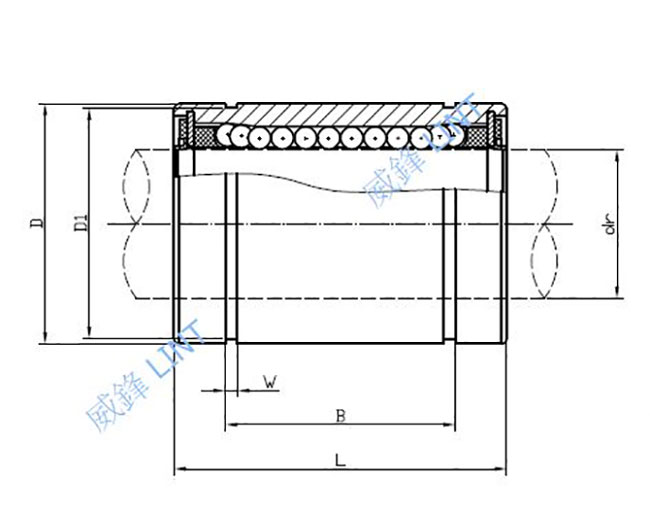

Outer Dimeter D Length L B W D 1 h h 1 θ
(°)
  Tolerance   Tolerance   Tolerance
(mm) (µm) (mm) (µm) (mm) (µm)
12    0
-11		 19     0
-0.2		 13.5     0
-0.2		 1.1 11.5 1 - - 8 -5 LM6UU
15 17 11.5 1.1 14.3 1 - - 11 -5 LM8SUU
15 24 17.5 1.1

14.3

 1 - - 16 -5 LM8UU
19    0
-13		 29 22 1.3 18 1 - - 30 -5 LM10UU
21 30 23 1.3 20 1.5 8 80° 31.5 -5 LM12UU
23 32 23 1.3 22 1.5 9 80° 43 -7 LM13UU
28 37 26.5 1.6 27 1.5 11 80° 69 -7 LM16UU
32    0
-16		 42 30.5 1.6 30.5 1.5 11 60° 87 -9 LM20UU
40 59     0
-0.3		 41     0
-0.3		 1.85 38 2 12 50° 220 -9 LM25UU
45 64 44.5 1.85 43 2.5 15 50° 250 -9 LM30UU
52    0
-19		 70 49.5 2.1 49 2.5 17 50° 390 -13 LM35UU
60 80 60.5 2.1 57 3 20 50° 585 -13 LM40UU
80 100 74 2.6 76.5 3 25 50° 1580 -13 LM50UU
90    0
-22		 110 85 3.15 86.5 3 30 50° 2000 -16 LM60UU
Please advice if Europe and America specification necessary
1N ≒ 0.102kgf
