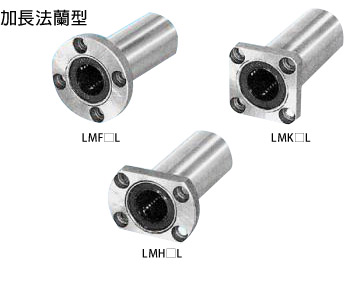

Linear Bearing-LMF_L Series

unit:(mm)
LMF_L Series Major Dimensions and Tolerance Eccentricity Squareness Basic Load Rating Nominal Shaft Diameter
(mm)
Model No. Ball Circuit Weight Inter Diameter
dr		 Outer Diameter
D		 Length
L		 Flange Dynamic Static
dr Tolerance D Tolerance L Tolerance
    (g) (μm) (μm) (mm) Df t Dp X Y Z (μm) (μm) C (N) Co(N) (mm)
LMF 6L UU 4 31 6     0
-10		 12    0
-13		 35    0
-0.3		 28 5 20 3.5 6.5 3.1 15 15 323 530 6
LMF 8L UU 4 51 8 15 45 32 5 24 3.5 6.5 3.1 431 784 8
LMF 10L UU 4 98 10 19    0
-16		 55 40 6 29 4.5 8 4.1 588 1100 10
LMF 12L UU 4 110 12 21 57 42 6 32 4.5 8 4.1 813 1570 12
LMF 13L UU 4 130 13 23 61 43 6 33 4.5 8 4.1 813 1570 13
LMF 16L UU 5 190 16 28 70 48 6 38 4.5 8 4.1 1230 2350 16
LMF 20L UU 5 260 20    0
-12		 32    0
-19		 80 54 8 43 5.5 9.5 5.1 20 20 1400 2740 20
LMF 25L UU 6 540 25 40 112    0
-0.5		 62 8 51 5.5 9.5 5.1 1560 3140 25
LMF 30L UU 6 680 30 45 123 74 10 60 6.6 11 6.1 2490 5490 30
LMF 35L UU 6 1020 35    0
-15		 52    0
-22		 135 82 10 67 6.6 11 6.1 25 25 2650 6270 35
LMF 40L UU 6 1570 40 60 151 96 13 78 9 14 8.1 3430 8040 40
LMF 50L UU 6 3600 50 80 192 116 13 98 9 14 8.1 6080 15900 50
LMF 60L UU 6 4500 60    0
-20		 90    0
-25		 209 134 18 112 11 17.5 11.1 30 30 7550 20000 60
Please advice if Europe and America specification necessary
1N ≒ 0.102kgf
