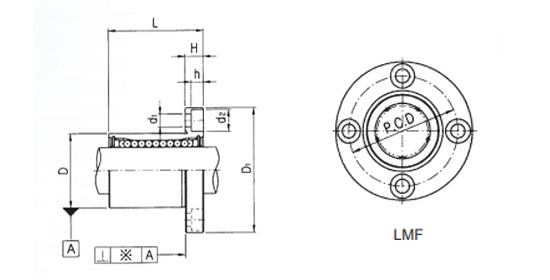

Linear Bearing-LMF Series

unit:(mm)
LMF Series Major Dimensions and Tolerance Eccentricity Squareness Basic Load Rating Nominal Shaft Diameter
(mm)
Model No. Ball Circuit Weight Inter Diameter
dr		 Outer Diameter
D		 Length
L		 Flange Dynamic Static
dr Tolerance D Tolerance L Tolerance
    (g) (μm) (μm) (mm) Df t Dp X Y Z (μm) (μm) C (N) Co(N) (mm)
LMF 6 UU 4 24 6 0 12 0 -13 19 0 -0.2 28 5 20 3.5 6 3.1 12 12 206 265 6
LMF 8S UU 4 32 8 15 17 32 5 24 3.5 6 3.1 176 216 8
LMF 8 UU 4 37 8 15 24 32 5 24 3.5 6 3.1 274 392 8
LMF 10 UU 4 72 10 -9 19 0 -16 29 40 6 29 4.5 7.5 4.1 372 549 10
LMF 12 UU 4 76 12 21 30 42 6 32 4.5 7.5 4.1 510 784 12
LMF 13 UU 4 88 13 23 32 43 6 33 4.5 7.5 4.1 510 784 13
LMF 16 UU 5 120 16 28 37 48 6 38 4.5 7.5 4.1 774 1180 16
LMF 20 UU 5 180 20 0 -10 32 0 -19 42 54 8 43 5.5 9 5.1 15 15 881 1370 20
LMF 25 UU 6 340 25 40 59 0 -0.3 62 8 51 5.5 9 5.1 980 1570 25
LMF 30 UU 6 470 30 45 64 74 10 60 6.6 11 6.1 1570 2740 30
LMF 35 UU 6 650 35 0 -12 52 0 -22 70 82 10 67 6.6 11 6.1 20 20 1670 3140 35
LMF 40 UU 6 1060 40 60 80 96 13 78 9 14 8.1 2160 4020 40
LMF 50 UU 6 2200 50 80 100 116 13 98 9 14 8.1 3820 7940 50
LMF 60 UU 6 3000 60 0 -15 90 0 -25 110 134 18 112 11 17 11.1 25 25 4700 10000 60
Please advice if Europe and America specification necessary
1N ≒ 0.102kgf
