Linear Bearing-LMH_L Series

unit:(mm)

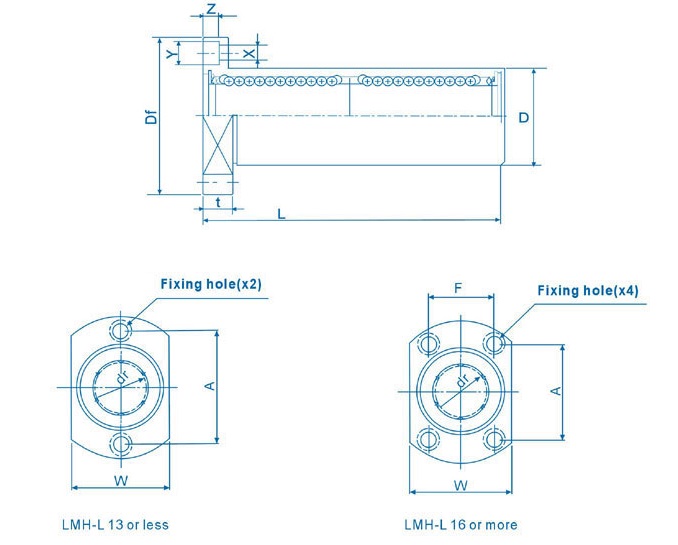

LMH_L Series Major Dimensions and Tolerance Eccentricity Squareness Basic Load Rating Nominal Shaft Diameter
(mm)
Model No. Ball Circuit Weight Inter Diameter
dr		 Outer Diameter
D		 Length
L		 Flange Dynamic Static
dr Tolerance D Tolerance L Tolerance
    (g) (μm) (μm) (mm) Df W t A F X Y Z (μm) (μm) C (N) Co(N) (mm)
LMH 6L UU 4 28 6     0
-10		 12    0
-13		 35    0
-0.3		 28 18 5 20 - 3.5 6.5 3.1 12 12 323 529 6
LMH 8L UU 4 47 8 15 45 32 21 5 24 - 3.5 6.5 3.1 431 784 8
LMH 10L UU 4 90 10 19    0
-16		 55 40 25 6 29 - 4.5 8 4.1 588 1100 10
LMH 12L UU 4 102 12 21 57 42 27 6 32 - 4.5 8 4.1 813 1570 12
LMH 13L UU 4 123 13 23 61 43 29 6 33 - 4.5 8 4.1 813 1570 13
LMH 16L UU 5 182 16 28 70 48 34 6 31 22 4.5 8 4.1 1260 2350 16
LMH 20L UU 5 247 20    0
-12		 32    0
-19		 80 54 38 8 36 24 5.5 9.5 5.1 15 15 1400 2740 20
LMH 25L UU 6 525 25 40 112    0
-0.5		 62 46 8 40 32 5.5 9.5 5.1 1560 3140 25
LMH 30L UU 6 645 30 45 123 74 51 10 49 35 6.6 11 6.1 2490 5490 30
Please advice if Europe and America specification necessary
1N ≒ 0.102kgf
