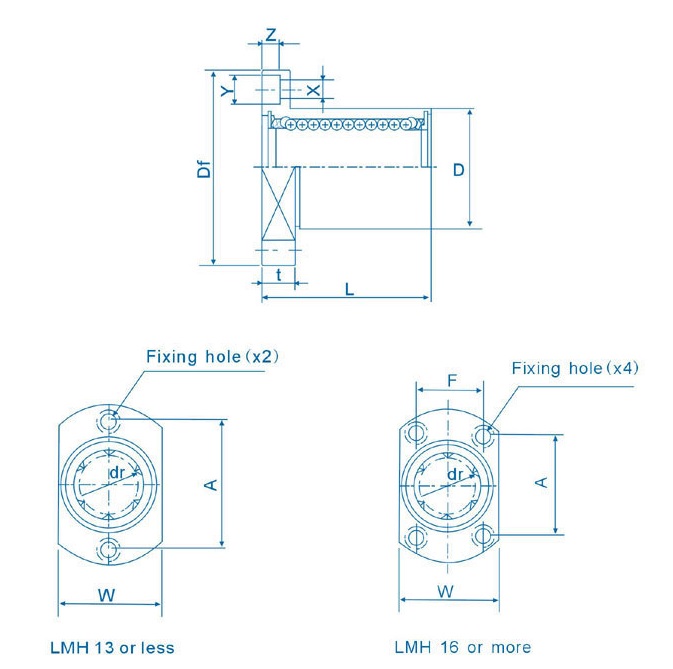

Linear Bearing-LMH Series

unit:(mm)
LM Series Major Dimensions and Tolerance Eccentricity Squareness Basic Load Rating Nominal Shaft Diameter
(mm)
Model No. Ball Circuit Weight Inter Diameter
dr		 Outer Diameter
D		 Length
L		 Flange Dynamic Static
dr Tolerance D Tolerance L Tolerance
    (g) (μm) (μm) (mm) Df K t A F X Y Z (μm) (μm) C (N) Co(N) (mm)
LMH 6 UU 4 21 6   0
-9		 12    0
-13		 19    0
-0.2		 28 18 5 20 - 3.5 6 3.1 12 12 206 265 6
LMH 8 UU 4 33 8 15 24 32 21 5 24 - 3.5 6 3.1 274 392 8
LMH 10 UU 4 64 10 19    0
-16		 29 40 25 6 29 - 4.5 7.5 4.1 372 549 10
LMH 12 UU 4 68 12 21 30 42 27 6 32 - 4.5 7.5 4.1 510 784 12
LMH 13 UU 4 81 13 23 32 43 29 6 33 - 4.5 7.5 4.1 510 784 13
LMH 16 UU 5 112 16 28 37 48 34 6 31 22 4.5 7.5 4.1 774 1180 16
LMH 20 UU 5 167 20    0
-10		 32    0
-19		 42 54 38 8 36 24 5.5 9 5.1 15 15 881 1370 20
LMH 25 UU 6 325 25 40 59    0
-0.3		 62 46 8 40 32 5.5 9 5.1 980 1570 25
LMH 30 UU 6 388 30 45 64 74 51 10 49 35 6.6 11 6.1 1570 2740 30
Please advice if Europe and America specification necessary
1N ≒ 0.102kgf
