Single Shaft Rail

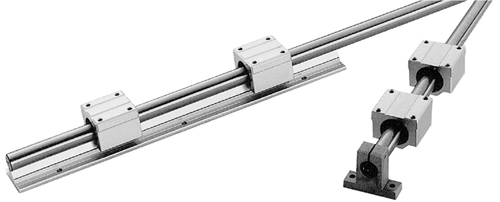

LINT single shaft rail consists of precision shaft, linear bearing blocks and aluminum base.
unit:(mm)

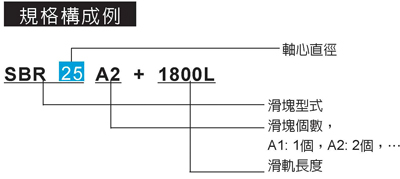

Model Type Diameter
of Axle Ø		 Combined size Slider(Block) size
H h W1 W L1 B C t1 ℓ S1 T N
SBR12 12 33.5 18.5 2 36 34 26 24 7 10 M5 24 -
SBRL12 68 45 8
SBR16 16 45 25 2.5 45 45 32 30 9 12 M5 33 -
SBRL16 85 60 8
SBR20 20 50 27 1.5 48 50 35 35 11 12 M6 39 -
SBRL20 95 70 8
SBR25 25 60 33 2.5 60 65 40 40 14 12 M6 47 -
SBRL25 130 90 8
SBR30 30 70 37 5 70 70 50 50 15 18 M8 56 -
SBRL30 140 100 8
1N ≒ 0.102kgf


unit:(mm)

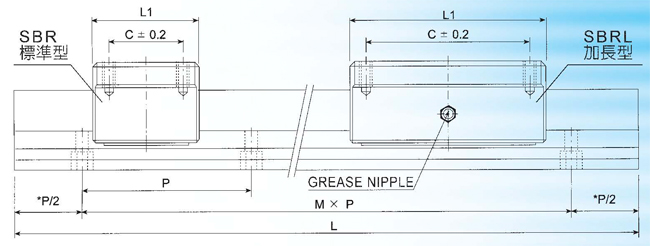

Track size Basic load
rating Dynamic		 Basic load
rating Static		 Model Type
W2 P1 t2 P S2 L(max) C(N) C0(N)
32 23 4 100 4.5 3600 411 598 SBR12
824 1196 SBRL12
40 30 5 150 5.5 3000 770 1170 SBR16
1230 2340 SBRL16
45 30 5 150 5.5 6000 860 1370 SBR20
1400 2740 SBRL20
55 35 6 200 6.5 6000 980 1560 SBR25
1560 3120 SBRL25
60 40 7 200 6.5 6000 1560 2740 SBR30
2490 5480 SBRL30
1N ≒ 0.102kgf
