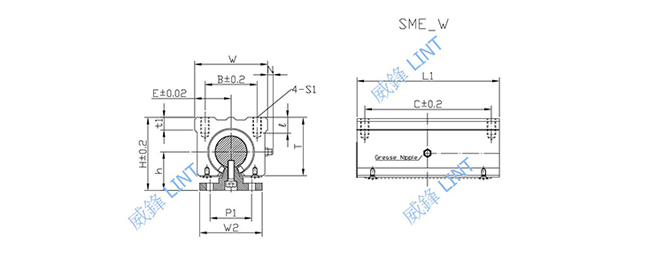

Linear Bearing with Block-SME_W

unit:(mm)
Model Type Diameter
of axle Ø		 Main Dimension Fixing Size Linear Bushing   Mass gf
h E W L F T N h1 θ B C S ℓ Model Type Basic load rating
Dynamic
C(N)		 Basic load rating
Static
Co(N)
SME12WUU 12 15 18 36 68 24 7 8 8.5 80° 26 45 M5 10 LM12UU-OPX2 820 1190 130
SME16WUU 16 20 22.5 45 85 33 9 8 10 80° 32 60 M5 12 LM16UU-OPX2 1230 2340 300
SME20WUU 20 23 24 48 95 39 11 8 10 60° 35 70 M6 12 LM20UU-OPX2 1400 2740 400
SME25WUU 25 27 30 60 130 47 14 8 11.5 50° 40 90 M6 12 LM25UU-OPX2 1560 3120 900
SME30WUU 30 33 35 70 140 56 15 8 14 50° 50 100 M8 18 LM30UU-OPX2 2490 5480 1260
1N ≒ 0.102kgf
