MTA-GL Series

unit:(mm)

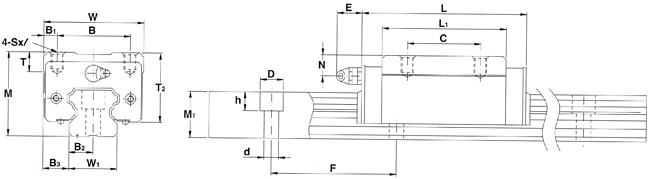

Model No. Assembly (mm) Block (mm)
Width(W) Height(M) B3 Length(L) B B1 L1 C T T2 Sxℓ N E Grease Fitting
GL15CC 34 28 9.5 59 26 4 38.2 26 6 23.5 M4x5 8.5 5.5 M4x0.7P
GL20CC 44 30 12 76.5 32 6 50.5 36 8 24.5 M5x6 5 12 M6x1.0P
GL20HC 44 30 12 92.5 32 6 66.5 50 8 24.5 M5x6 5 12 M6x1.0P
GL25CC 48 40 12.5 84 35 6.5 58 35 8 33.0 M6x8 10 12 M6x1.0P
GL25HC 48 40 12.5 103 35 6.5 77 50 8 33.0 M6x8 10 12 M6x1.0P
GL30CC 60 45 16 100.5 40 10 70.5 40 10 37.0 M8x10 10 12 M6x1.0P
GL30HC 60 45 16 122.5 40 10 92.5 60 10 37.0 M8x10 10 12 M6x1.0P
GL35CC 70 55 18 108.3 50 10 80.5 50 11 46.0 M8x12 15 12 M6x1.0P
GL35HC 70 55 18 130.5 50 10 105.5 72 11 46.0 M8x12 15 12 M6x1.0P
GL45CC 86 70 20.5 128.2 60 13 99.2 60 15 58.5 M10x17 20 16 1/8PT
GL45HC 86 70 20.5 159.5 60 13 130.5 80 15 58.5 M10x17 20 16 1/8PT
unit:(mm)

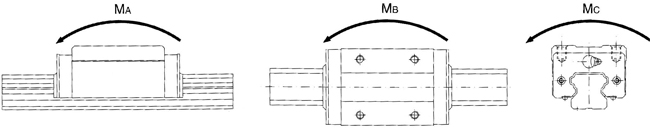

Model Rail (mm) Rating Load kgf Static moment -kgf-M Block Rail
Width(W1) Height(M1) Pitch(F) B2 dxDxh C C0 MA MB MC kg/m kg/m
GL15CC 15 15 60 7.5 4.5x7.5x5.5 850 1380 7.3 7.3 10.1 0.18 1.7
GL20CC 20 18 60 10 6x9.5x8.5 1410 2430 15.9 15.9 23.7 0.25 2.5
GL20HC 20 18 60 10 6x9.5x8.5 2170 3240 27.5 27.5 31.6 0.35 2.5
GL25CC 23 22 60 11.5 7x11x9 2030 3510 27.5 27.5 40 0.54 3.6
GL25HC 23 22 60 11.5 7x11x9 2770 4680 46.8 46.8 51.8 0.67 3.6
GL30CC 28 26 80 14 9x14x12 2860 4770 43.8 43.8 65.8 0.9 5.1
GL30HC 28 26 80 14 9x14x12 3800 6370 74.4 74.4 87.7 1.1 5.1
GL35CC 34 29 80 17 9x14x12 3800 6230 65.4 65.4 104.7 1.5 6.9
GL35HC 34 29 80 17 9x14x12 5120 8310 111.1 111.1 139.9 2 6.9
GL45CC 45 38 105 22.5 14x20x17 6120 9750 127.6 127.6 213.2 2.6 11.0
GL45HC 45 38 105 22.5 14x20x17 8200 13000 217.1 217.1 284.1 3.1 11.0
