MTA-FL Series

unit:(mm)

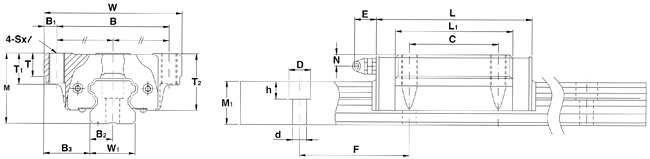

Model No. Assembly (mm) Block (mm)
Width(W) Height(M) B3 Length(L) B B1 L1 C T T1 T2 Sxℓ N E Grease Fitting
FL15CC 47 24 16 59 38 4.5 38.2 30 8 11 19.5 M5x7 4.5 5.5 M4x0.7P
FL20CC 63 30 21.5 76.5 53 5 50.5 40 9.5 9.5 24.5 M6x9.5 5 12 M6x1.0P
FL20HC 63 30 21.5 92.5 53 5 66.5 40 9.5 10 24.5 M6x9.5 5 12 M6x1.0P
FL25CC 70 36 23.5 84 57 6.5 58 45 12 16 29.0 M8x16 6 12 M6x1.0P
FL25HC 70 36 23.5 103 57 6.5 77 45 12 16 29.0 M8x12 6 12 M6x1.0P
FL30CC 90 42 31 100.5 72 9 70.5 52 12 18 34.0 M10x12 7 12 M6x1.0P
FL30HC 90 42 31 122.5 72 9 92.5 52 12 18 34.0 M10x12 7 12 M6x1.0P
FL35CC 100 48 33 105.5 82 9 80.5 62 13 21 39.0 M10x13 8 12 M6x1.0P
FL35HC 100 48 33 130.5 82 9 105.5 62 13 21 39.0 M10x13 8 12 M6x1.0P
FL45CC 120 60 37.5 128.2 100 10 99.2 60 14 25 48.5 M12x14 10 16 1/8PT
FL45HC 120 60 37.5 159.5 100 10 130.5 80 14 25 48.5 M12x14 10 16 1/8PT
unit:(mm)

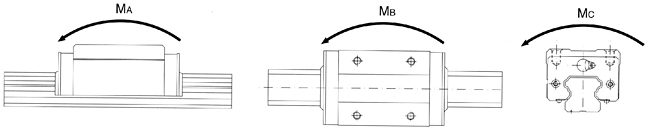

Model No. Rail (mm) Rating Load kgf Static moment -kgf-M Block Rail
Width(W1) Height(M1) Pitch(F) B2 B3 dxDxh C C0 MA MB MC kg/pc kg/m
FL15CC 15 15 60 7.5 16 4.5x7.5x5.5 850 1380 7.3 7.3 10.1 0.2 1.7
FL20CC 20 18 60 10 21.5 6x9.5x8.5 1410 2430 15.9 15.9 23.7 0.35 2.5
FL20HC 20 18 60 10 21.5 6x9.5x8.5 2170 3240 27.5 27.5 31.6 0.47 2.5
FL25CC 23 22 60 11.5 23.5 7x11x9 2030 3510 27.5 27.5 40.0 0.59 3.6
FL25HC 23 22 60 11.5 25 7x11x9 2770 4680 46.8 46.8 51.8 0.75 3.6
FL30CC 28 26 80 14 25 9x14x12 2860 4770 43.8 43.8 65.8 1.1 5.1
FL30HC 28 26 80 14 31 9x14x12 3800 6370 74.4 74.4 87.7 1.3 5.1
FL35CC 28 29 80 17 31 9x14x12 3800 6230 65.4 65.4 104.7 1.6 6.9
FL35HC 34 29 80 17 33 9x14x12 5120 8310 111.1 111.1 139.9 2.0 6.9
FL45CC 45 38 105 22.5   14x20x17 6120 9750 127.6 127.6 213.2 2.8 11
FL45HC 45 38 105 22.5 33 14x20x17 8200 13000 217.1 217.1 284.1 3.3 11
