INA-GR Series

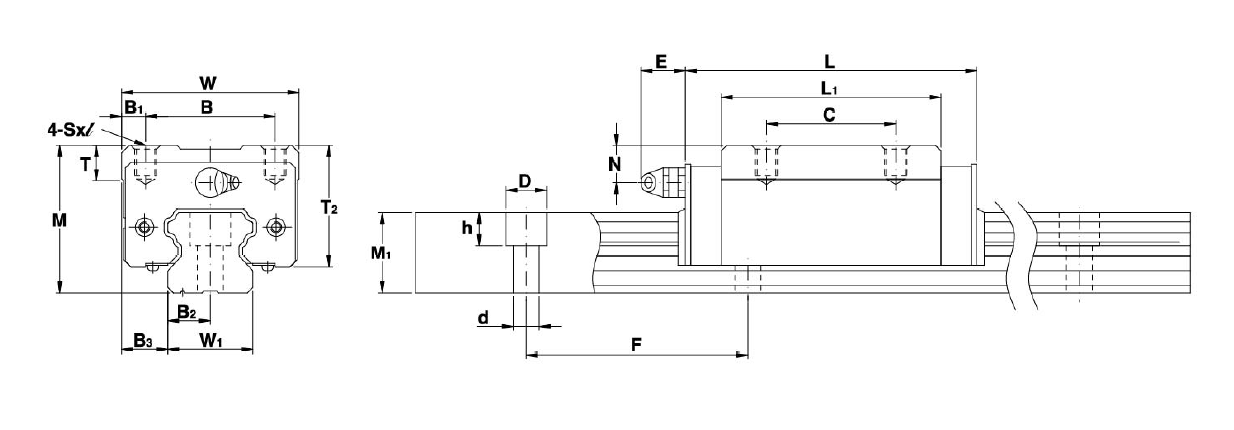

unit:(mm)
Model No. Assembly(mm) Block(mm)
Width(W) Height(M) B3 Length(L) B B1 L1 C T T2 Sxℓ N E Grease Fitting
GR15TA 34 24 9.5 57.2 26 4 38.2 26 6 19.5 M4x5 4 7 M4x0.7P
GR15SA 34 24 9.4 39.2 26 4 21.5 - 6 19.5 M4x5 4 7 M4x0.7P
GR20TA 42 28 11 67.2 32 5 47.2 32 7.5 22 M5x6 4 12 M6x1.0P
GR20SA 42 28 11 47.5 32 5 27.5 - 7.5 22 M5x6 4 12 M6x1.0P
GR25TA 48 33 12.5 79.5 35 6.5 59.5 35 8 26 M6x8 4.5 12 M6x1.0P
GR25SA 48 33 12.5 55 35 6.5 35 - 8 26 M6x8 4.5 12 M6x1.0P

unit:(mm)

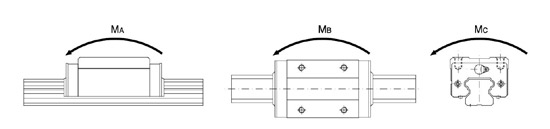

Model No. Rail(mm) Rating Load -kgf Static moment -kgf-M Block
kg/pc		 Rail
kg/m
Width(W1) Height(M1) Pitch(F) B2 dxDxh C C0 MA MB MC
GR15TA 15 15 60 7.5 4.5x7.5x5.5 850 1380 7.3 7.3 10.1 0.18 1.7
GR15SA 15 15 60 7.5 4.5x7.5x5.5 550 1132 2.04 2.04 4.08 0.11 1.7
GR20TA 20 18 60 10 6x9.5x8.5 1410 2430 15.9 15.9 23.7 0.25 2.5
GR20SA 20 18 60 10 6x9.5x8.5 730 1468 3.06 2.04 7.14 0.23 2.5
GR25TA 23 22 60 11.5 7x11x9 2030 3510 27.5 27.5 40 0.54 3.6
GR25SA 23 22 60 11.5 7x11x9 1190 2295 5.1 4.08 12.24 0.45 3.6
