SAP SET SCREW TYPE/DISK FLEXIBLE COUPLING

  • Material: S45C Steel
  • Buffer material: SUS disk
  • Surface Treament: Dye black
  • Features:
    1. High torque、High rigid
    2. Low inertia、zero backlash
    3. Applicable to large and medium servo motors
    4. Containing keyway processing for fixing
    5. Fixed mode: Set screw type
  • Product No:
    SAP-82-Ø20xØ25 = Type-Inside dia

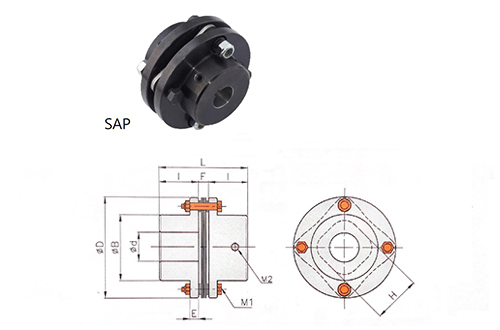

Dimension
Unit: mm
Catalog Number D B d L I F H M1 M2
Min Max
SAP-68 68 40 10 25 56 25 6 28 4-M6 M5
SAP-82 82 54 12 35 56.3 25 6.3 34 4-M6 M6
SAP-94 94 58 12 38 69.4 30 8.5 40 4-M8 M6
SAP-104 104 68 20 45 80 35 10 42 4-M8 M6
SAP-126 126 78 20 50 91 40 11 50 4-M10 M10
SAP-144 144 88 20 60 102 45 12 57 4-M10 M10
SAP-168 168 104 30 70 164 75 15.1 108 6-M10 M10
SAP-180 180 120 30 85 176 80 16 115 6-M10 M12
SAP-215 215 128 40 90 200 90 20 128 6-M16 M12

Specifications
Unit: mm
Catalog Number Rated Torque
(N.m)		 Max. Torpue
(N.m)		 Max. Rotational Frequency
(Rpm/min)		 Moment* of Inertia
(Kg.m²)		 Errors of Eccentricity
(mm)		 Errors of Angularity
(°)
SAP-68 40 80 20000 3 ±0.8 1
SAP-82 80 160 17000 8.7 ±1.0 1
SAP-94 180 360 15000 16 ±1.2 1
SAP-104 245 490 13000 26 ±1.4 1
SAP-126 441 882 11000 65 ±1.6 1
SAP-144 780 1560 9000 99 ±1.8 1
SAP-168 1170 2340 5100 238 ±1.0 1
SAP-180 1960 3920 4800 365 ±1.0 1
SAP-215 4903 9806 4300 830 ±1.0 1
