SGB-C DISK/CLAMP TYPE/SHORTER OF FLEXIBLE COUPLING

  • Material: Aluminum alloy
  • Buffer material: SUS disk
  • Surface Treament: Anodizing standard white
  • Features:
    1. High rigid
    2. High torque
    3. Low inertia
    4. Zero backlash
    5. Suitable for working machine
    servomotor and high precision
    transmission mechanism
    6. Fixed mode: Clamp type
  • Product No:
    SGB-50C-Ø20xØ20 = Type-Inside dia

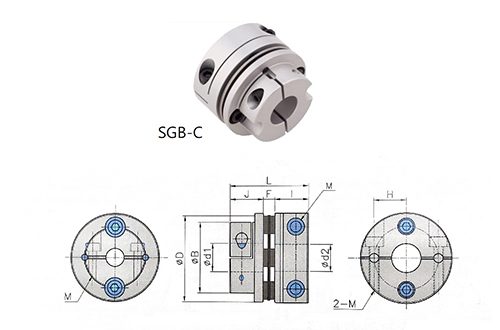

Dimension
Unit: mm
Catalog Number D I-J B L F M d1*d2
(H7)		 Mass**
(g)
Min Max
SGB-40C 40 15 28 34.5 4.5 3-M4 8 16 90
SGB-45C 45 15 33 34.5 4.5 3-M4 8 18 110
SGB-50C 50 20 40 46 6.0 4-M5 10 20 190
SGB-57C 57 20 42 46 6.0 4-M5 12 25 210
SGB-65C 65 24 50 55 7.0 4-M6 12 28 368

Specifications
Unit: mm
Catalog Number Rated Torque
(N.m)		 Max. Torpue
(N.m)		 Max. Rotational Frequency
(Rpm/min)		 Moment* of Inertia
(Kg.m²)		 Errors of Eccentricity
(mm)		 Errors of Angularity
(°)		 Errors of Shaft
End-Play
(mm)
SGB-40C 6 12 10000 17x10-6 0.02 ±0.25 1.0
SGB-45C 9 18 10000 23x10-6 0.02 ±0.30 1.0
SGB-50C 17 34 10000 48x10-6 0.02 ±0.30 1.0
SGB-57C 25 50 10000 76x10-6 0.02 ±0.40 1.0
SGB-65C 55 110 10000 185x10-6 0.02 ±0.40 1.0
