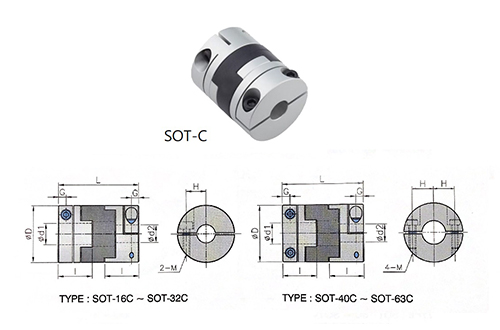

SOT -C OLDHAM/SET SCREW TYPE/FLEXIBLE COUPLING

  • Material: Aluminum alloy
  • Buffer material: Nylon
  • Surface Treament: Anodizing standard white
  • Features:
    1. High rigid
    2. High insulation
    3. Handy assembly
    4. Larger eccentricity and error of angle
    deviation allowable
    5. Operating temperatures: -20˚c~80˚c
    6. Fixed mode: Clamp type
  • Product No:
    SOT-40C-Ø10xØ12 = Type-Inside dia

Dimension
Unit: mm
Catalog Number D L I G H M d1*d2
(H7)		 Mass**
(g)
Min Max
SOT-16C 16 29 13 3.0 5 M2.5 4 6.35 12
SOT-20C 20 33 15 3.0 6.5 M3 5 8 20
SOT-25C 25 39 18 4.0 9.0 M3 5 10 40
SOT-32C 32 45 20 5.0 11.0 M4 6 14 80
SOT-40C 40 50 22.5 5.5 13.0 M5 8 16 130
SOT-50C 50 58 26.5 6.25 16.0 M6 12 22 240
SOT-63C 63 71 32.5 8.0 21.0 M8 15 25 480

Specifications
Unit: mm
Catalog Number Rated Torque
(N.m)		 Max. Torpue
(N.m)		 Max. Rotational Frequency
(Rpm/min)		 Moment* of Inertia
(Kg.m²)		 Errors of Eccentricity
(mm)		 Errors of Angularity
(°)
SOT-16C 0.7 1.4 9500 5.8x10-7 1.0 3
SOT-20C 1.2 2.4 7600 1.5x10-6 1.5 3
SOT-25C 2.0 4.0 6100 4.4x10-6 2.0 3
SOT-32C 4.5 9.0 4800 1.4x10-5 2.5 3
SOT-40C 9.0 18.0 3800 4.1x10-5 3.0 3
SOT-50C 18.0 36.0 3100 1.2x10-5 3.5 3
SOT-63C 36.0 72.0 2400 3.7x10-4 4.0 3
