SRJ-C JAW/CLAMP TYPE/FLEXIBLE COUPLING

  • Material: Aluminum alloy
  • Buffer material: PU (hardness:red/95 sh A)
  • Surface Treament: Anodizing standard white
  • Features:
    1. High torque
    2. High rigid
    3. Great shock resistance
    4. Suitable for general transmission、high inertia and cutting mechanism
    5. Operating temperatures: -30˚c~80˚c
    6. Fixed mode: Clamp type
  • Product No:

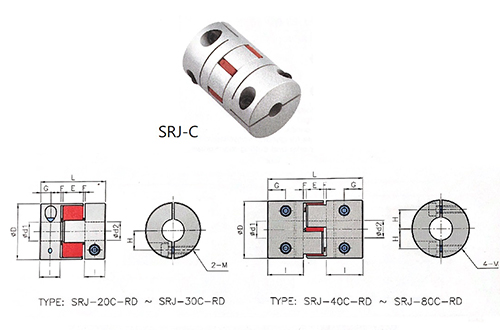

    SRJ-20C-Ø6xØ8 = Type-Inside dia

Dimension
Unit: mm
Catalog Number D L I E F G H M d1*d2
(H7)		 Mass**
(g)
Min Max
SRJ-20C-RD 20 30 10 9 0.5 5.0 6.5 M2.5 5 8 19
SRJ-30C-RD 30 34 11 11 0.5 5.5 10.0 M4 6 14 50
SRJ-40C-RD 40 66 25 14 1.0 8.5 14.0 M5 10 19 190
SRJ-55C-RD 55 78 30 16 1.0 10.0 20.0 M6 15 25 412
SRJ-65C-RD 65 90 35 17.5 1.25 12.0 24.0 M8 12 35 560
SRJ-80C-RD 80 114 45 21 1.5 15.0 31.0 M8 15 45 1400
SRJ-80C-RD(S45C) 80 114 45 21 1.5 15.0 31.0 M8 38 45 3800

Specifications
Unit: mm
Catalog Number Rated Torque
(N.m)		 Max. Torpue
(N.m)		 Max. Rotational Frequency
(Rpm/min)		 Moment* of Inertia
(Kg.m²)		 Errors of Eccentricity
(mm)		 Errors of Angularity
(°)		 Errors of Shaft
End-Play
(mm)
SRJ-20C-RD 5.0 10 23000 1.0x10-6 0.1 1.0 ±0.4
SRJ-30C-RD 12.5 25 19000 6.1x10-6 0.1 1.0 ±0.5
SRJ-40C-RD 17.0 34 14000 3.8x10-5 0.1 1.0 ±0.6
SRJ-55C-RD 60.0 120 10500 1.5x10-4 0.1 1.0 ±0.7
SRJ-65C-RD 160.0 320 8500 3.8x10-4 0.1 1.0 ±0.75
SRJ-80C-RD 450.0 900 7100 6.2x10-3 0.1 1.0 ±0.8
SRJ-80C-RD(S45C) 600.0 1200 6000 48.57x10-6 0.1 3.0 ±0.8
