SWSS-C SLITTED/CLAMP TYPE/SET SCREW TYPE/SHORTER OF FLEXIBLE COUPLING

  • Material:
    Stainless steel
  • Features:
    1. Little and One-body shape
    2. Zero backlash
    3. High rigid
    4. Suitable for encoder、low horsepower
    transmission bodies and high precision
    transmission mechanism
    5. High deflection
    6. Torque in SUS is better
    7. SUS is more suitable for clean room
    8. Fixed mode: Clamp type
  • Product No:
    SWSS-20C-Ø6xØ6 = Type-Inside dia

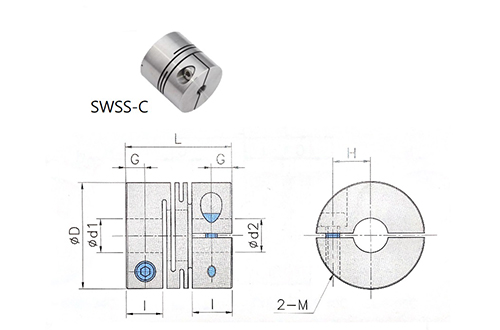

Dimension
Unit: mm
Catalog Number D L I G H M d1*d2
(H7)		 Mass**
(g)
Min Max
SWS-16C 16 18 6.8 3.4 5 M2.5 4 6 10
SWS-20C 20 20 7.5 3.7 6.5 M3 5 8 13
SWS-25C 25 25 9.5 4.7 8.5 M3 6 10 26
SWS-32C 32 32 12.6 6.0 11 M4 6 14 63
SWS-40C 40 40 15.3 7.5 14 M5 10 16 117
SWSS-16C 16 18 6.8 3.4 5 M2.5 5 6 22
SWSS-20C 20 20 7.65 3.8 6.5 M3 5 8 40
SWSS-25C 25 25 9.5 4.8 8.5 M3 6 10 80
SWSS-32C 32 32 12.5 6.0 11 M4 8 14 180

Specifications
Unit: mm
Catalog Number Rated Torque
(N.m)		 Max. Torpue
(N.m)		 Max. Rotational Frequency
(Rpm/min)		 Moment* of Inertia
(Kg.m²)		 Errors of Angularity
(°)		 Errors of Shaft
End-Play
(mm)
SWS-16C 0.3 0.6 9500 2.9x10-7 1 ±0.2
SWS-20C 0.5 1.0 7600 7.5x10-7 1 ±0.2
SWS-25C 1.0 2.0 6100 2.3x10-6 1 ±0.2
SWS-32C 2.2 4.0 4800 8.1x10-6 1 ±0.2
SWS-40C 5.0 10.0 3800 1.9*10-5 1 ±0.2
SWSS-16C 0.5 1.0 9500 7.8*10-7 1 ±0.2
SWSS-20C 1.0 2.0 7600 2.1*10-6 1 ±0.2
SWSS-25C 2.0 4.0 6100 6.3*10-6 1 ±0.2
SWSS-32C 3.5 7.0 4800 2.2*10-5 1 ±0.2
