Material: SCG-C-Aluminum alloy SCGS-C-Stainless steel Surface Treament: SCG-C Anodizing standard white Features: 1.One-body shape 2. Super high rigid 3. High torque 4. Low inertia 5. Fixed mode: Clamp type Product No: SCG-20C-Ø6xØ8 = Type-Inside dia

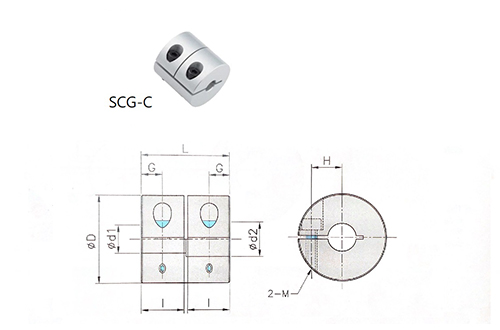

Dimension

Unit: mm

Catalog Number	D	L	I	G	H	M	d1*d2 (H7)		Mass** (g)
							Min	Max
SCG-16C	16	16	7.5	3.5	5	M2.5	5	6	11
SCG-20C	20	20	9.5	4.5	6.5	M3	6	8	12
SCG-25C	25	25	12	6.0	9	M4	6	10	30
SCG-32C	32	32	15.5	7.5	11	M4	8	14	71
SCG-40C	40	40	19.5	9.5	14	M5	14	18	120
SCGS-16C	16	16	7.5	3.75	5	M2.5	5	6	21
SCGS-20C	20	20	9.5	4.75	6.5	M3	6	8	41
SCGS-25C	25	25	12	6.0	9	M4	6	10	85
SCGS-32C	32	32	15.5	7.5	11	M4	8	14	160
SCGS-40C	40	40	19.5	9.5	14	M5	14	18	190

Specifications

Unit: mm

Catalog Number	Rated Torque (N.m)	Max. Torpue (N.m)	Max. Rotational Frequency (Rpm/min)	Moment* of Inertia (Kg.m²)
SCG-16C	0.3	0.6	9500	3.0x10-7
SCG-20C	0.5	1.0	7600	8.7x10-7
SCG-25C	1.0	2.0	6100	2.7x10-6
SCG-32C	2.0	4.0	4800	7.1x10-6
SCG-40C	4.0	8.0	4000	1.5x10-5
SCGS-16C	0.3	0.6	9500	8.0x10-7
SCGS-20C	0.5	1.0	7600	2.4x10-6
SCGS-25C	1.0	2.0	6100	7.3x10-5
SCGS-32C	2.0	4.0	4800	2.5x10-5
SCGS-40C	4.0	8.0	4000	4.3x10-5
