Material: SCG-Aluminum alloy SCGS-Stainless steel Surface Treament: SCG-Anodizing standard white Features: 1.One-body shape 2. Super high rigid 3. High torque 4. Low inertia 5. Fixed mode: Set screw type Product No: SCG-20-Ø6xØ8 = Type-Inside dia

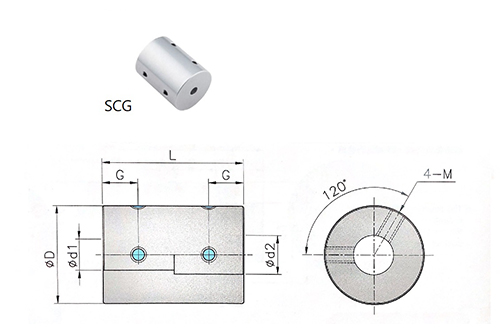

Dimension

Unit: mm

Catalog Number	D	L	G	M	d1*d2 (H7)		Mass** (g)
					Min	Max
SCG-16	16	24	6	M3	5	8	11
SCG-20	20	30	7	M4	6	10	20
SCG-25	25	36	9	M4	6	12	45
SCG-32	32	41	10	M5	8	16	89
SCGS-16	16	24	6	M3	5	8	31
SCGS-20	20	30	7	M4	6	10	69
SCGS-25	25	36	9	M4	6	12	133
SCGS-32	32	41	10	M5	8	16	253

Specifications

Unit: mm

Catalog Number	Rated Torque (N.m)	Max. Torpue (N.m)	Max. Rotational Frequency (Rpm/min)	Moment* of Inertia (Kg.m²)
SCG-16	0.3	0.6	24000	4.4x10-7
SCG-20	0.5	1.0	19000	1.3x10-6
SCG-25	1.0	2.0	15000	3.9x10-6
SCG-32	2.0	4.0	12000	1.2x10-5
SCGS-16	0.3	0.6	24000	1.2x10-6
SCGS-20	0.5	1.0	19000	3.5x10-6
SCGS-25	1.0	2.0	15000	1.0x10-5
SCGS-32	2.0	4.0	12000	3.1x10-5
