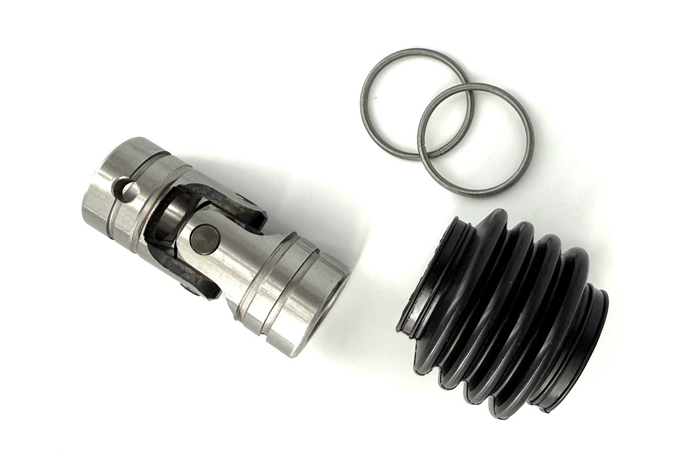

SC-兩節式精密型萬向接頭

unit:(mm)
型號 / 尺寸 d D C E ℓ L P ℓ0 b T M G
SC-03-00A 3 6 9 2.5 13 26 1 5 - - - -
SC-04-00A 4 8 7 4 12 24 1.5 6.8 - - - -
SC-05-00A 5 10 9 5 15 30 2 8.7 - - - -
SC-06-※※※ 6 12 9 4.5 15.5 31 3 10 - - - -
SC-08-※※※ 8 15 10 5 18 36 3.5 12.5 3 9.5 - 25
SC-10-※※※ 10 20 12 6 21 42 4.5 16.5 4 11.5 - 32
SC-12-※※※ 12 23 15 7.5 26 52 5 20.5 4 13.5 5 35
SC-14-※※※ 14 26 17 8.5 29.5 59 5.7 23 5 16 5 40
SC-16-※※※ 16 30 22 11 37 74 6.5 26.5 5 18 6 46
SC-18-※※※ 18 33 23.5 11.75 40.5 81 7 28.5 5 20 6 52
SC-20-※※※ 20 36 25 12.5 43.5 87 8 31.5 5 22 6 58
SC-22-※※※ 22 40 27 13.5 47 94 9 34.5 7 25 6 62
SC-25-※※※ 25 44 30 15 52.5 105 10 38.5 7 28 8 68
SC-30-※※※ 30 51 35 17.5 61 122 11.5 44 7 33 8 82
SC-35-※※※ 35 59 40 20 70 140 13 52 10 38.5 10 90
SC-40-※※※ 40 67 45 22.5 78.5 157 14.5 60 10 43.5 10 100
SC-45-※※※ 45 75 50 25 88 176 16 68 12 48.5 10 110
SC-50-※※※ 50 83 55 27.5 95.7 191.4 17.5 76 12 53.5 10 120
SC-60-88A 60 98 70 - 118 236 - - 12 65 12 140
註：未標示的尺寸與SC- ※※ -00A相同
